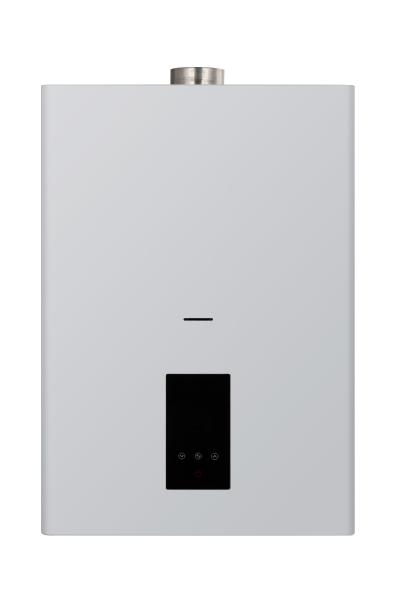

Wall Hung Condensing Gas Boiler Both Heating And Hot Water For Household Use

Foshan Shunde Dongyuan Gas Appliances Industrial Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Wall Hung Condensing Gas Boiler Both Heating And Hot Water For Household Use from wholesalers

    Buy cheap Wall Hung Condensing Gas Boiler Both Heating And Hot Water For Household Use from wholesalers
    • Buy cheap Wall Hung Condensing Gas Boiler Both Heating And Hot Water For Household Use from wholesalers

    Wall Hung Condensing Gas Boiler Both Heating And Hot Water For Household Use

    Ask Lasest Price
    Price : negotiation
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : negotiation
    Delivery Time : negotiation
    • Product Details
    • Company Profile

    Wall Hung Condensing Gas Boiler Both Heating And Hot Water For Household Use

    Wall Hung Condensing Gas Boiler Both Heating And Hot Water For Household Use ​

    Product Paramenters

    Product Model
    L1P20-S407
    L1P24-S407
    L1P28-S407
    Gas Type
    Natural gas
    Rated Gas Pressure(Pa)
    2000
    Applicable Gas Pressure(Pa)
    1500~3000
    Heating Rated Maximum Heat Load(Kw)
    20.0
    24.0
    28.0
    Heating Rated Minimum Heat Load(Kw)
    7.0
    8.4
    9.8
    Heating Rated Maximum Heat Output(Kw)
    17.8
    21.4
    25.0
    Heating Rated Minimum Heat Output(Kw)
    6.0
    7.2
    8.4
    Domestic Hot Water Rated Heat Load(Kw)
    20.0
    24.0
    28.0
    lgnition Heat Load
    16.0
    19.0
    22.0
    Maximum Gas Consumption(M'/H)
    2.15±3%
    2.55士3%
    3.0士3%
    Maximum Secondary Pressure(Pa)
    1250士50
    1250士50
    1250士50
    Heating
    HeatingWater TemperatureAdjustmentRange
    25°C~60°C(floor heating)/30°C~80°C(radiator heating)
    Maximum Working Pressure Of HeatingSystem(Mpa)
    0.3
    Expansion Tank Capacity(L)
    6
    Initial Pressure Of Expansion Tank(Mpa)
    0.1
    Energy EfficiencyLevel (Heating)
    Level2
    Domesti Water
    Hot Water Production Capacity(kg/min)(Δt=25K)
    10
    12
    14
    Temperature Adjustment Range(°C)
    35°C~65°C
    Applicable Water Pressure For Domestic Hot Water System(MPa)
    0.02~0.6
    Energy Efficiency Level(Domestic Hot Water)
    Level 2
    Heating Rated Heat LoadState ElectricPower(W)
    130
    145
    Heating Minimum Heat Load State ElectricPower(W)
    130
    145
    Standby Power(W)
    4
    Power Supply Properties
    ~220V-50Hz
    Heating System Pump(m)
    6
    Electric Shock Protection Type
    Class 1
    Shell Protection Level
    IPX4
    Dimensions: Long Width Thickness(mm)
    700x410x270
    740x410x313
    Gross Weight(kg)
    31
    33.5
    34
    Coaxial Flue Size(mm)
    Φ60XΦ100
    Gas Inlet Size(lnch)
    G1/2
    Heating Inlet And Outlet Size(Inch)
    G3/4
    Domestic Hot WaterInlet and Qutlet Dimensions(Inch)
    G1/2


    Wall Hung Condensing Gas Boiler Both Heating And Hot Water For Household Use


    FAQ
    1. How can I get the price?

    We usually quote within 24 hours after we get your inquiry(Except weekend and holidays).

    If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.

    2. How can we guarantee quality?

    Always a pre-production sample before mass production; Always final Inspection before shipment.

    66+years experience in this area, Our company's products are also exported to: Eastern Europe, the Middle East, Central Asia,

    South America and other more than 80+ countries

    3. How long is the delivery time of the product?

    The delivery time is 30-35 days after order was confimmed and received deposit.

    4. What is the shipping method?

    It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect). -Please confirm with us before placing bulk orders.

    5. What services can we provide?

    Accepted Delivery Terms: FOB, CFR, CIF, EXW, DDP, DDU;

    Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF; - Accepted Payment Usually 30% deposit in advance, 70% balance paid before shipment.It depends on the condition of your market, 20%-30% D/P and 70%-100% L/C at sight bothare workable.

    Language Spoken: English, Chinese, Spanish, Japanese, Portuguese, German, French, Arabic, Russian, Korean, Italian
