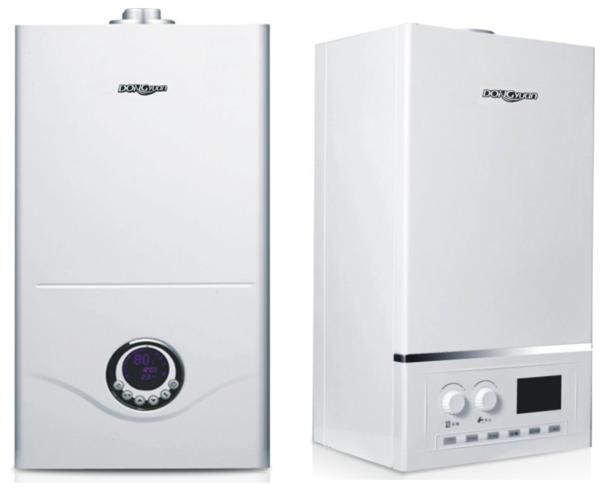

    Wall Hung Hot Water Gas Boiler Integrated Automatic Ignition Type

    Ask Lasest Price
    Brand Name : Dongyuan
    Model Number : L1PB36-HE
    Certification : ISO14001,ISO9001,OHSAS18001
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union, D/A
    Supply Ability : 10000pcs per month
    Delivery Time : 30days after receiving the deposit
    • Product Details
    • Company Profile

    Wall Hung Hot Water Gas Boiler Integrated Automatic Ignition Type

    Wall Hung Gas Boiler For Home Heating


    Gas Central heating Environmental Protection For Heating And Domestic Hot Water Gas Boiler
    Technical data
    Model NumberL1PB18LIPB20L1PB24L1PB28
    Gas TypeNG/LPG
    Rated Gas Pressure(Pa)2000/2800
    Efficiency Under Rated Heat Input(%)Above 88%
    Temp.Range Of Heating Water(℃)Radiator:30-80 Floor Heating:30-60
    Application Water Pressure(Mpa)0.1-0.3
    Power Supply20-50HZ
    Electric Power(W)110110110110
    Heating Area(㎡)70-14080-160100-200160-260
    Lift Of pump(m)5556
    Air Input/Exhaust Duct(mm)φ60/φ100
    Rated Gas Input(kw)Airtight Forced Circulation
    Sparated Input/Exhaust Duct(optional)φ80/φ100
    Expansion Tank Capacity(L)0.1
    Rated Gas Output(kw)6668
    Water Circulation Type15.917.621.124.7
    Preset Pressure Of Expansion Vessel(Mpa)18202428
    △T=25℃ Hot Water Supply(kg/min)9101214
    △T=30℃ Hot Water Supply(kg/min)7.58.31011.7
    Temp.Range Of DHW Supply(℃)30-60
    Noise On Working(DB)<42
    Exhaust TypeForced Exhaust
    Ignition TypeIntegrated Automatic Ignition
    Applicative Water Pressure(mpa)0.03-0.8
    The Minimum Starting Flow (L/min)2
    The Minimum Closed Flow(L/min)1.6
    Connections(mm)For Gas&Heating Water Pipes:G3/4 For DHW Pipes:G1/2
    The length Of Flue Dust(m)1
    Temperature ControlGas Proportional Adjustment

    Patent technology
    - The inbention patent high-frequency electronic anti scaling device and the original windbreak and sand
    structure design are commotted to manufacturing gas wall hanging stove products suitable for our conditions.

    Safe and reliable:
    -The temperature gradient control function and the three anti freezing control are unique, and the safety
    protecrtion is up to 28. The design life of the whole machine is more than 15 years.

    Low niose design:
    - Low niose design, using cast alnuminum fan, intelligent control gas proportional valve, with special
    combustion and water system, running noise is less than 42 dicebel.

    - Large screen display.
    - Self-diagnostics system. Error will be shown once there is any fault.
    - Max heating power and max DHW supply can be adjusted separately.
    - Multiple security devices ensure high safety grade including anti- freezing protection, overheat protection,
    by-pass protection, and so on.
    - Inteligent constant temperature control will provide easeful warmth for your rooms and comfortable shower
    water anytime.
    - Forced exhaust.
    - Extra quiet. Noise is less than 55db when working.
    - Four section timer.
    - Thermostat optional.


    - Air draught mode. Open chamber, especially design for house type with collective flue.
    - New design, gas saving, high efficiency, environmental protected. Adopt advanced technology, high quality
    components, high efficiency combusion.
    - Easy operation. With 2 knobs for mode choosing and function option, another 5 indicating lights for indicating
    working condition of boiler.
    - Various capacity available.Input capacity(20kw,24kw,28kw,32kw) can match with different house type.
    - Can be connected with room thermostat or remote controller which providing more function options.
    - Various structure available, suitable for disserent using condition.


    - Stable appearance, classic style, simple and handsome- one shell.
    - Tough buttons,big- screen dynamic LCD display, snesitive and comfortable.
    - Mircrocomputer automatic control. automatic detection of running state.
    - Human man- machine interface,wasy operation and maintenance.
    - Digital precise temperature control system, are free to adjust temperature.
    - Gas flow proportional control, variable frequency and energy-saving heating.
    - Dynamic fire display, automatic central control data output, intuitive and convenient.
    - Green environmental prptection, ultra-low emission.
    - Ultra-quiet design with air combustion, extremely quiet.
    - Multiple security features, automatic return to work status, security no worries.
