| Brand Name : | Dongyuan |
| Model Number : | L1PB32-HS05 |
| Certification : | ISO14001,ISO9001,OHSAS18001 |
| Price : | Negotiable |
| Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 10000pcs per month |
| Delivery Time : | 30days after receiving the deposit |

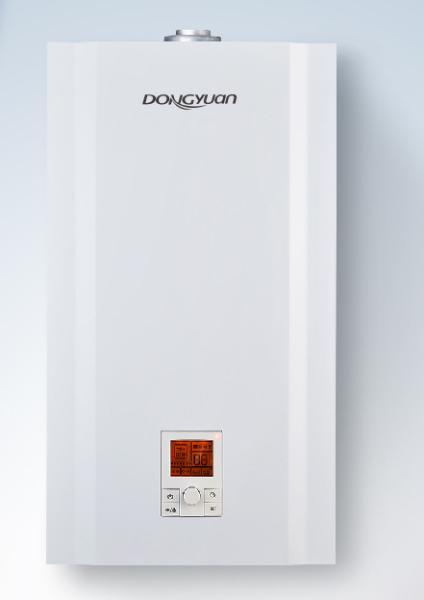

Multi Functional natural gas hot water boiler
Technical data
| Model Number | L1PB32 | |
| Gas Type | NG/LPG | |
| Rated Gas Pressure(Pa) | 2000/2800 | |
| Rated Gas Input(kw) | 32 | |
| Rated Gas Output(kw) | 28.2 | |
| Efficiency Under Rated Heat Input(%) | Above88% | |
| Power Supply | 20-50HZ | |
| Electric Power(W) | 145 | |
| Temp.Range Of Heating Water(℃) | Radiator:30-80 Floor Heating:30-60 | |
| Heating Area(㎡) | 200-300 | |
| Lift Of pump(m) | 7 | |
| Application Water Pressure(Mpa) | 0.1-0.3 | |
| Expansion Tank Capacity(L) | 8 | |
| Preset Pressure Of Expansion Vessel(Mpa) | 0.1 | |
| Water Circulation Type | Airtight Forced Circulation | |
| △T=25℃ Hot Water Supply(kg/min) | 16 | |
| △T=30℃ Hot Water Supply(kg/min) | 13.3 | |
| Temp.Range Of DHW Supply(℃) | 30-60 | |
| Applicative Water Pressure(mpa) | 0.03-0.8 | |
| The Minimum Starting Flow (L/min) | 2 | |
| The Minimum Closed Flow(L/min) | 1.6 | |
| Connections(mm) | For Gas&Heating Water Pipes:G3/4 For DHW Pipes:G1/2 | |
| Air Input/Exhaust Duct(mm) | φ60/φ100 | |
| Sparated Input/Exhaust Duct(optional) | φ80/φ100 | |
| The length Of Flue Dust(m) | 1 | |
| Noise On Working(DB) | ＜42 | |
| Exhaust Type | Forced Exhaust | |
| Ignition Type | Integrated Automatic Ignition | |
| Temperature Control | Gas Proportional Adjustment | |
Feature of Multi Functional natural gas hot water boiler
- High safety grade including anti- freezing protection.
- Silent technology and running voice are lower than national standard.
- One-week timer
- Europe componentes with the best quality and be more trustful.
- Temperature save and Energy saving and environment friendly.
- LCD display
- Integrate control system
- Unique remote control system realizing climate compensation function, energy saving.
- High efficient sealed chamber ensure sufficient burning and energy saving.
- Digital precise temperature control system, are freee to adjust temperature.
- Gas flow proportional control, bariable frequency and energy-saving heating.
- Indication of temperatures, working modes, current burner power and error codes on the color
multifunctional LCD display.
- Thermostat or remote controller which providing more function options.
- Steady ignition and work by low inlet gas pressure from 3mbar, full output by inlet gas pressure from 13mbar
and higher.
- Supports outdoor temperature driven mode.
- Intelligent constant temperature control will provide easeful warmth for your rooms and comfortable shower
water anytime.
