| Brand Name : | Dongyuan |
| Model Number : | L1PB32-HS11 |
| Certification : | ISO14001,ISO9001,OHSAS18001 |
| Price : | Negotiable |
| Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 10000pcs per month |
| Delivery Time : | 30days after receiving the deposit |

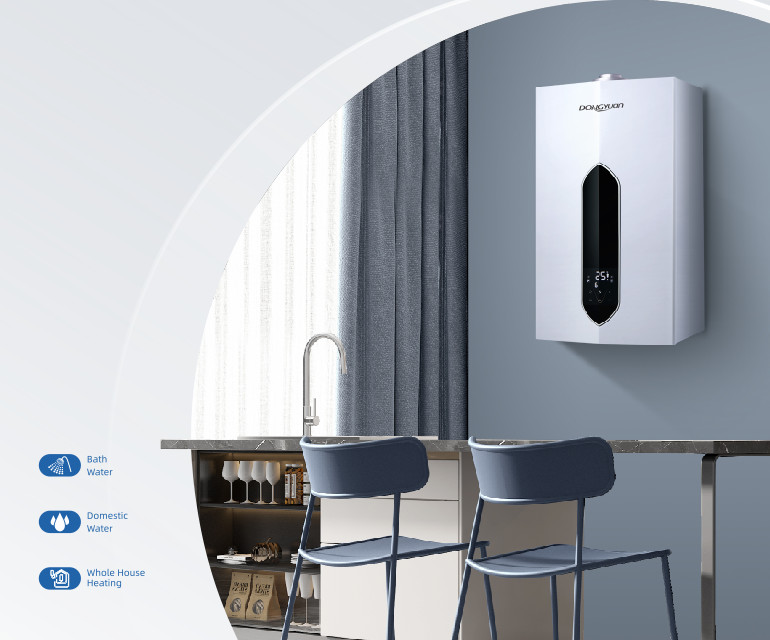

Hot water boiler temperature control Gas Combi Boilers
Technical data
| Model Number | L1PB32 | |
| Gas Type | NG/LPG | |
| Rated Gas Pressure(Pa) | 2000/2800 | |
| Rated Gas Input(kw) | 32 | |
| Rated Gas Output(kw) | 28.2 | |
| Efficiency Under Rated Heat Input(%) | Above88% | |
| Power Supply | 20-50HZ | |
| Electric Power(W) | 145 | |
| Temp.Range Of Heating Water(℃) | Radiator:30-80 Floor Heating:30-60 | |
| Heating Area(㎡) | 200-300 | |
| Lift Of pump(m) | 7 | |
| Application Water Pressure(Mpa) | 0.1-0.3 | |
| Expansion Tank Capacity(L) | 8 | |
| Preset Pressure Of Expansion Vessel(Mpa) | 0.1 | |
| Water Circulation Type | Airtight Forced Circulation | |
| △T=25℃ Hot Water Supply(kg/min) | 16 | |
| △T=30℃ Hot Water Supply(kg/min) | 13.3 | |
| Temp.Range Of DHW Supply(℃) | 30-60 | |
| Applicative Water Pressure(mpa) | 0.03-0.8 | |
| The Minimum Starting Flow (L/min) | 2 | |
| The Minimum Closed Flow(L/min) | 1.6 | |
| Connections(mm) | For Gas&Heating Water Pipes:G3/4 For DHW Pipes:G1/2 | |
| Air Input/Exhaust Duct(mm) | φ60/φ100 | |
| Sparated Input/Exhaust Duct(optional) | φ80/φ100 | |
| The length Of Flue Dust(m) | 1 | |
| Noise On Working(DB) | ＜42 | |
| Exhaust Type | Forced Exhaust | |
| Ignition Type | Integrated Automatic Ignition | |
| Temperature Control | Gas Proportional Adjustment | |
Feature of Hot water boiler temperature control Gas Combi Boilers
- High safety grade anti- freezing protection.
- Silent running voice
- One-week timer
- Europe componentes quality
- Temperature save and Energy saving and environment friendly.
- LCD display
- Integrate control system
- Unique remote control system realizing climate compensation function, energy saving.
- High efficient sealed chamber ensure sufficient burning and energy saving.
- Digital precise temperature control system, are freee to adjust temperature.
- Gas flow proportional control, bariable frequency and energy-saving heating.
- Indication of temperatures, working modes, current burner power and error codes on the color
multifunctional LCD display.
- Thermostat or remote controller which providing more function options.
- Steady ignition and work by low inlet gas pressure from 3mbar, full output by inlet gas pressure from 13mbar
and higher.
- Supports outdoor temperature driven mode.
- Intelligent constant temperature control will provide easeful warmth for your rooms and comfortable shower
water anytime.
About US
Foshan Shunde Dongyuan gas appliances Ind. Co.,Ltd as the professional wall hung gas boiler factory was established in 2007 and start to develop the overseas market from 2010. Dongyuan gas appliances Ind. Co.,Ltd have five fully automated wall-hung gas boiler production line with an annual capacity of 700,000 units,have two engineers with 23 years R&D experiences .With the powerful and skillful work team, rigid production and quality control ,DONGYUAN success to obtain the ISO9001, ISO14001 certificate, our boilers conform to the requests of CU-TR certificate and European standard, make they hot sale in Russia,Iran, Azerbaijan, Uzbekistan, Israel and other European and Middle East countries.
|
|
