Foshan Shunde Dongyuan Gas Appliances Industrial Co., Ltd. Foshan Dongyuan Thermal Technology Co.,Ltd
8 Years
| Ask Lasest Price | |
| Brand Name : | Dongyuan |
| Model Number : | L1PB26-HA1 |
| Certification : | CE |
| Price : | Negotiable |
| Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 10000pcs per month |
| Delivery Time : | 30days after receiving the deposit |

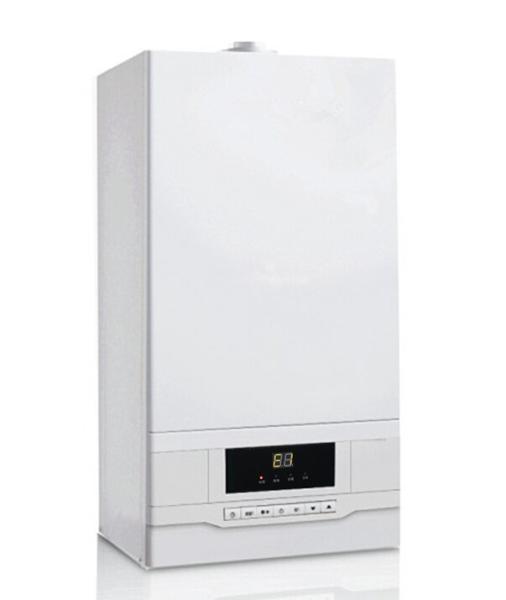

Wall Mounted Gas Boiler With EMC/GAR/ERP/LVD Test Report
Description Of Wall Mounted Gas Boiler
Gas boilers are central heating systems that act like mini fires, continuously heating water. This heated water is then pumped around the property through pipes and radiators in order to heat space, and either pumped directly to taps and showers (as with a combi boiler), or stored in a hot water tank for future water usage. The boiler uses either on-grid gas or bulk LPG stored on site. This gas is then burned in the boiler’s combustion chamber and warms the water to around 70°C through a heat exchanger.
Technical data
| Rated Gas Pressure(Pa) | 2000/2800 | |
| Gas Type | NG/LPG | |
| Model number | L1PB20 | L1PB26 |
| Rated Gas Input | 20KW | 26KW |
| Rated Gas Output | 17.6KW | 23.1KW |
| Efficiency Under Rated Heat Input(%) | Above 88% | |
| Temp.Range Of Heating Water(℃) | Radiator:30-80 Floor Heating:30-60 | |
| Power Supply | 20-50HZ | |
| Application Water Pressure(Mpa) | 0.1-0.3 | |
| Lift Of pump(m) | 5 | 5 |
| Heating Area(㎡) | 80-160 | 100-200 |
| Electric Power(W) | 110 | 110 |
| Water Circulation Type | Airtight Forced Circulation | |
| Expansion Tank Capacity(L) | 6 | 6 |
| △T=25℃ Hot Water Supply(kg/min) | 10 | 13 |
| △T=30℃ Hot Water Supply(kg/min) | 8.3 | 10.8 |
| Preset Pressure Of Expansion Vessel(Mpa) | 0.1 | |
| The Minimum Starting Flow (L/min) | 2 | |
| The Minimum Closed Flow(L/min) | 1.6 | |
| Temp.Range Of DHW Supply(℃) | 30-60 | |
| Applicative Water Pressure(mpa) | 0.03-0.8 | |
| Sparated Input/Exhaust Duct(optional) | φ80/φ100 | |
| Air Input/Exhaust Duct(mm) | φ60/φ100 | |
| Exhaust Type | Forced Exhaust | |
| Noise On Working(DB) | ＜42 | |
| The length Of Flue Dust(m) | 1 | |
| Temperature Control | Gas Proportional Adjustment | |
| Ignition Type | Integrated Automatic Ignition | |
Feature of Home Gas Boiler
*Fashionable appearance with nobleness and elegance
*Remote control system
* Classical double knobs control with easy operation
*Low noise, low carbon and energy-saving
* 24 safety protections
* With CE Certification,EMC/GAR/ERP/LVD Test Report
* OEM & ODM solutions available
Application of Home Gas Boiler
Hotel
Garage
Household
Guest
Abou US
Foshan Dongyuan Thermal Technology Co., Ltd. have five fully automatic production lines with an annual capacity of 500,000 pieces ,have 8 engineers with 26 years R&D experiences . With the powerful and skillful work team, rigid production and quality control ,DONGYUAN success to obtain the ISO9001, ISO14001 certificate, our boilers and water heater hot sale well all over the world, especially in Russia, Iran, Azerbaijan, Uzbekistan, Israel and other European,Southest Asia and South America, etc.
From mold design and material development to precision machining and products finishing, DONGYUAN exercises strict quality control on each production stage, not only produce traditional wall-mounted gas boiler, flue type and force type gas water heater , but also develop condensing gas boiler with thermal efficiency up to 105% , and the balanced type gas water heater .
DONGYUAN will continue its effort to create high quality product and serve the customers from all over the world, to earn co-prosperity and mutual interest.
|
|
