| Brand Name : | Dongyuan |
| Model Number : | L1PB32-HS10 |
| Certification : | ISO14001,ISO9001,OHSAS18001 |
| Price : | Negotiable |
| Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 10000pcs per month |
| Delivery Time : | 30days after receiving the deposit |

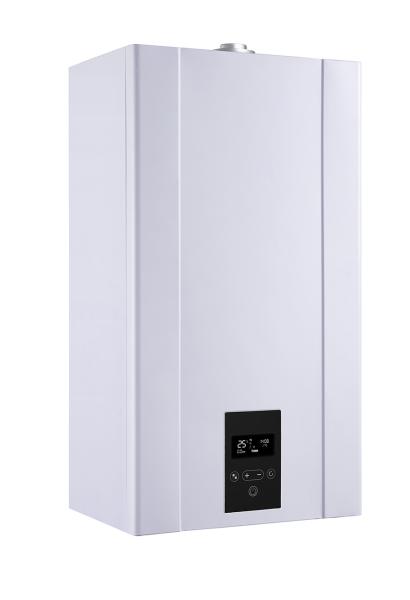

Full Premixed Condensation Combi Boilers 32KW For Kitchen
PRODUCT DESCRIPTION
1Safe and Reliable
With 20 kinds of safe protection to protect your whole family
2 Stable Performance
All parts are from famous manufacturer,combine with European technology and design to ensure product
quality steady.
3 Hign efficiency
Designed by balanced combustion,the combustion chamber equipped with efficient ceramic insulation board,
the boiler have a heat efficiency up to 90%.
PRODUCT DISPLAY
S SERIES
TECHNICAL DATA
| Model Number | L1PB32 | L1PB36 |
| Gas Type | NG/LPG | |
| Rated Gas Pressure(Pa) | 2000/2800 | |
| Rated Gas Input(kw) | 32 | 36 |
| Rated Gas Output(kw) | 28.2 | 31.7 |
| Efficiency Under Rated Heat Input(%) | Above88% | |
| Power Supply | 20-50HZ | |
| Electric Power(W) | 145 | 145 |
| Temp.Range Of Heating Water(℃) | Radiator:30-80 Floor Heating:30-60 | |
| Heating Area(㎡) | 200-300 | 200-300 |
| Lift Of pump(m) | 7 | 7 |
| Application Water Pressure(Mpa) | 0.1-0.3 | |
| Expansion Tank Capacity(L) | 8 | 8 |
| Preset Pressure Of Expansion Vessel(Mpa) | 0.1 | |
| Water Circulation Type | Airtight Forced Circulation | |
| △T=25℃ Hot Water Supply(kg/min) | 16 | 18 |
| △T=30℃ Hot Water Supply(kg/min) | 13.3 | 15 |
| Temp.Range Of DHW Supply(℃) | 30-60 | |
| Applicative Water Pressure(mpa) | 0.03-0.8 | |
| The Minimum Starting Flow (L/min) | 2 | |
| The Minimum Closed Flow(L/min) | 1.6 | |
| Connections(mm) | For Gas&Heating Water Pipes:G3/4 For DHW Pipes:G1/2 | |
| Air Input/Exhaust Duct(mm) | φ60/φ100 | |
| Sparated Input/Exhaust Duct(optional) | φ80/φ100 | |
| The length Of Flue Dust(m) | 1 | |
| Noise On Working(DB) | ＜42 | |
| Exhaust Type | Forced Exhaust | |
| Ignition Type | Integrated Automatic Ignition | |
| Temperature Control | Gas Proportional Adjustment | |
MAIN COMPONENTS
ABOUT US
Dongyuan Thermal Technology Co., Ltd founded in 2018, is a high-tech enterprise focusing on the R & D, manufacturing and sales of gas appliances such as gas water heater, gas wall mounted furnace and gas module furnace.
Dongyuan thermal Technology Co., Ltd has 40000 square meters of self-owned plant, five most advanced gas appliance production lines in the industry, two commercial module boiler production lines, and China's leading authoritative laboratory. Equipped with an advanced computer automatic detection platform, automatic box feeding equipment, automatic packaging equipment, and automatic stacking equipment of KUKA manipulator, the annual production capacity can reach 600000 sets; The annual production capacity of gas water heater can reach 900000 units, and the products sell well in domestic and foreign markets.
COMPANY PROFILE
ASSEMBLU LINE
QUALITY TEST
WHY CHOOSE US
1 PRICE: We make competitive & effort able price with reducting our margin
2 QUALITY: Our quality control process
3 SERVICE & SUPPORT: One year warranty. Provide 1% of total goods payments as free-of -charge spare parts.
4 Delivery: Very fast,first order (35-40) days,repeat order (25-30) days
|
|
