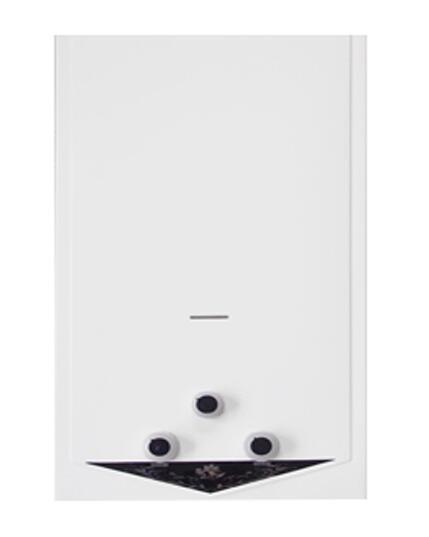

Low Pressure Flue Type Instant Gas Water Heater For Hot Water Supply

Technical data

Features:

1. White powder coated body.

2. Automatic water link starting

3. Anti-dry burning

4. Unexpected flame out protexction

5. Over water pressure protection

6. 20 minutes timer

7. Winter&summer shift knob

8. Over high water temperature

9. Wide range of water& gas flow agjustment

10. Applicable water pressure:0.025-0.8Mpa

11. 3V battery power pulse ignition

12. On&off switch starting indicator

Low water pressure start uo function

1. Double ignition pin, water control automatic impulse ignition by water-gas interlock valve.

2. Flame out failure protection, Anti-dry combustion.

3. Over heating and 20 minutes timer shutdown protection.

4. Panel in new and good design, different color coating panel.

5. Winter-summer switch for gas saving.

6.Good pulse ignitor to keep the battery functional in one year.

7.Excellent heat exchanger asorbs heat more efficiently.

8. Special cold and hot water convert.

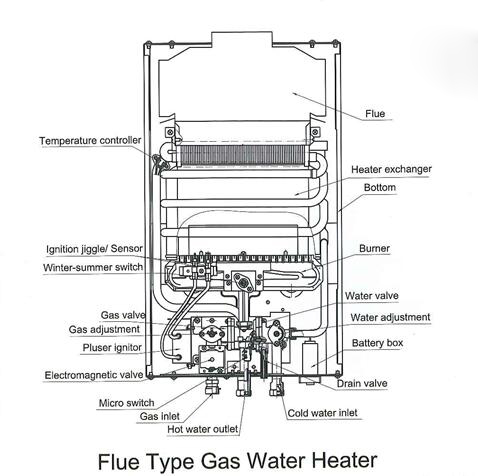

Flue Type Gas Water Heater

Temperature controller

Lgnition jiggle/ Sensor

Winter-summer switch

Gas valve

Gas adjustment

Pluse ignitor

Electromagnetic vale

Mircro switch

Gas inlet

Hot water outlet

Flue

Heater exchanger

Bottom

Burner

Water valve

Water adjustment

Battery box

Drain valve

Cold water inlet

Foshan Shunde Dongyuan gas appliances Ind. Co.,Ltd as the professional wall hung gas boiler factory was established in 2007 and start to develop the overseas market from 2010. Dongyuan gas appliances Ind. Co.,Ltd have five fully automated wall-hung gas boiler production line with an annual capacity of 700,000 units,have two engineers with 23 years R&D experiences .With the powerful and skillful work team, rigid production and quality control ,DONGYUAN success to obtain the ISO9001, ISO14001 certificate, our boilers conform to the requests of CU-TR certificate and European standard, make they hot sale in Russia,Iran, Azerbaijan, Uzbekistan, Israel and other European and Middle East countries.

From mold design and material development to precision machining and products finishing, DONGYUAN exercises strict quality control on each production stage, not only produce traditional wall-mounted gas boiler, but also developed a condensing gas boiler with thermal efficiency up to 105%.

DONGYUAN will continue its effort to create high quality product and serve the customers from all over the world, to earn co-prosperity and mutual interest.
