Gas Central Heating European Technology For Room Heating And Shower Hot Water Home Gas Boiler
Technical data
| Model Number | L1PB32 |
| Gas Type | NG/LPG |
| Rated Gas Pressure(Pa) | 2000/2800 |
| Rated Gas Input(kw) | 32 |
| Rated Gas Output(kw) | 28.2 |
| Efficiency Under Rated Heat Input(%) | Above88% |
| Power Supply | 20-50HZ |
| Electric Power(W) | 145 |
| Temp.Range Of Heating Water(℃) | Radiator:30-80 Floor Heating:30-60 |
| Heating Area(㎡) | 200-300 |
| Lift Of pump(m) | 7 |
| Application Water Pressure(Mpa) | 0.1-0.3 |
| Expansion Tank Capacity(L) | 8 |
| Preset Pressure Of Expansion Vessel(Mpa) | 0.1 |
| Water Circulation Type | Airtight Forced Circulation |
| △T=25℃ Hot Water Supply(kg/min) | 16 |
| △T=30℃ Hot Water Supply(kg/min) | 13.3 |
| Temp.Range Of DHW Supply(℃) | 30-60 |
| Applicative Water Pressure(mpa) | 0.03-0.8 |
| The Minimum Starting Flow (L/min) | 2 |
| The Minimum Closed Flow(L/min) | 1.6 |
| Connections(mm) | For Gas&Heating Water Pipes:G3/4 For DHW Pipes:G1/2 |
| Air Input/Exhaust Duct(mm) | φ60/φ100 |
| Sparated Input/Exhaust Duct(optional) | φ80/φ100 |
| The length Of Flue Dust(m) | 1 |
| Noise On Working(DB) | ＜42 |
| Exhaust Type | Forced Exhaust |
| Ignition Type | Integrated Automatic Ignition |
| Temperature Control | Gas Proportional Adjustment |
| Product Dimensions(mm) | 855*470*390 |
| Packing Dimensions(mm) | 870*495*390 |
- Integrated design of control system,120 degree turns over freely, convenience for maintenance.

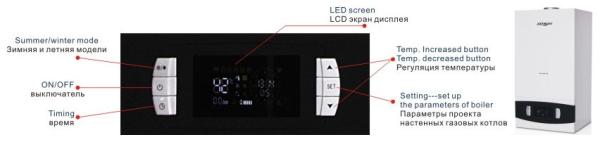

- Unique remote control system realizing climate compensation function,ensure energy saving.
- Main heat exchanger with high efficiency and energy-saving enable heating efficiency reach Europe Standard.
- Advanced pressure sensors technology process monitoring and water pressure displaying, ensure boiler safety.
- With efficient, energy saving and high lift water pump ensure boiler low noise while working.
- 24H timing switch enable setting on /off with random needs.
- High quality copper waterway valves and pipe components ensure how water supplier reliable and comfortable.
- With Aluminum fan and good quality ball bearing ensure low noise while working.
- With simple operation muti-function human-machine conversation system.
- Supper bigger LED display with indicate light,durable touch switch operation.
- With modular structure design, advanced assemble process, ensure excellent quality.
- Multiple automatic protecting function ensure safety and reliability.
- High efficiency sealed chamber system ensure sufficient burning and energy saving.
-The main pars are come from famous brand supplier which ensure best quality.
- Unique remote control system realizing climate compensation function,ensure energy saving.
- Advanced pressure sensors technology process monitoring and water pressure displaying, ensure boiler safety.
- With simple operation muti-function human-machine conversation system.
- Main heat exchanger with high efficiency and energy-saving enable heating efficiency reach Europe Standard.
- High quality copper waterway valves and pipe components ensure how water supplier reliable and comfortable.
- Multiple automatic protecting function ensure safety and reliability.
- 24H timing switch enable setting on/off with random needs.
- High efficient sealed chamber system ensure sufficient burning and energy saving.
- With Aluminum fan and good quality ball bearing ensure low noise while working.
- With modular structure design,advances assemble process, ensure excellent quality.
-Fashionable LED display with indicate light, fur able touch switch operation.(Fashionable LED display with
durable touch and knob switch operation.)
- Integrated design of control system, 120 degree turns over freely, convenient for maintenance.
- With efficient, energy saving and high lift water pump ensure boiler low noise while working.
- The main parts are come from famous brand supplier which ensure best quality.
- High efficiency sealed chamber system ensure sufficient burning and energy saving.
- Main heat exchanger with high efficiency and energy-saving enable heating efficiency reach Europe Standard.
- Unique remote control system realizing climate compensation function, ensure energy safety.
- Advanced pressure sensors technology process monitoring and water pressure displaying, ensure boiler safety.
- High quality copper waterway valves and pipe components ensure how water supplier reliable and comfortable.
- With simple operation muti-function human-machine conversation system.
- With efficient, energy saving and high lift water pump ensure boiler low noise while working.
- With Aluminum fan and good quality ball bearing ensure low noise while working.
- Integrated design of control system,120 degree turns over freely, convenient for maintenance.
- 24H timing switch enable setting on/off with random needs.
- With modular structure design, advances assemble process,ensure excellent quality.
- Multiple automatic protecting function ensure safety and reliability.
- The main parts are come from famous brand supplier which ensure best quality.
F INTELLIGENT SERIES
1. European fashion appearance design with LED screen, elegant and luxury.
2. 4 fixed heating timer mode and 1 customized mode, selection or setting are more convenient.
3. Whole series boiler's dimensions are the same, PCB are avaliable in whole.
4. With special function of intelligent memory of electricity cut off, the system would recover automatically
and no need for reset.
|
|
