| Brand Name : | Dongyuan |
| Model Number : | L1PB18-HI |
| Certification : | ISO14001,ISO9001,OHSAS18001 |
| Price : | USD230PCS |
| Payment Terms : | T/T |
| Supply Ability : | 10000 Sets per month |
| Delivery Time : | 7 business days after confirming the artwork & receiving |

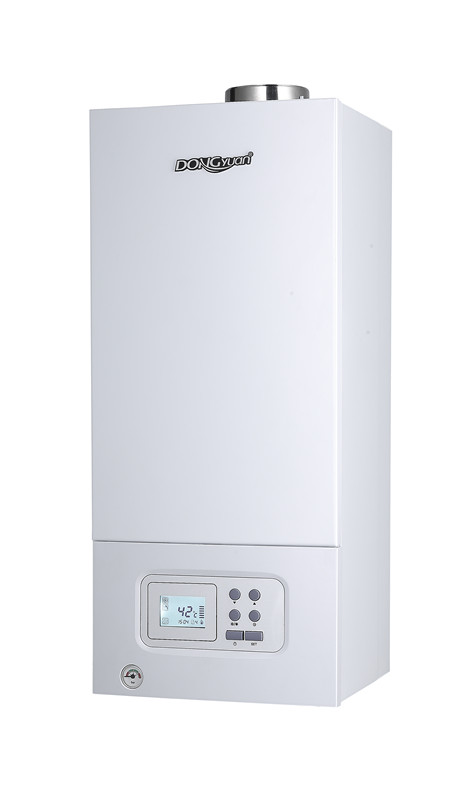

Mini Size Home Gas Boiler Wall Mounted Boiler For Hot Water Supply And Room Heating
Technical data
| Model Number | L1PB12-HI | L1PB14-HI | L1PB16-HI | L1PB18-HI |
| Gas Type | NG/LPG | |||
| Rated Gas Pressure(Pa) | 2000/2800 | |||
| Rated Gas Input(kw) | 12 | 14 | 16 | 18 |
| Min. Heat Input(kw) | 5 | 5.9 | 6.7 | 7.6 |
| Min. Heat Output(kw) | 3.8 | 4.4 | 5 | 5.7 |
| Efficiency Under Rated Heat Input(%) | About 88% | |||
| Power Supply | AC220V-50HZ | |||
| Electric Power | 110 | |||
| Electricity And Water Protection Grade | IPX4 | |||
| Rated Heat output | 10.6 | 12.3 | 14.1 | 15.9 |
| Temp.Range Of Heating Water(℃) | Radiator:30-80 Floor Heating:30-60 | |||
| Heating Area(㎡) | 60-70 | 60-80 | 60-100 | 60-120 |
| Lift Of pump(m) | 5 | |||
| Application Water Pressure(Mpa) | 0.1-0.3 | |||
| Expansion Tank Capacity(L) | 6 | |||
| Preset Pressure Of Expansion Vessel(Mpa) | 0.1 | |||
| Water Circulation Type | Airtight Forced Circulation | |||
| △T=25℃ Hot Water Supply(kg/min) | 6 | 7 | 8 | 9 |
| △T=30℃ Hot Water Supply(kg/min) | 5 | 5.8 | 6.7 | 7.5 |
| Temp.Range Of DHW Supply(℃) | 30-60 | |||
| Applicative Water Pressure(mpa) | 0.03-0.8 | |||
| The Minimum Starting Flow (L/min) | 2 | |||
| The Minimum Closed Flow(L/min) | 1.6 | |||
| Connections(mm) | For Gas&Heating Water Pipes:G3/4 For DHW Pipes:G1/2 | |||
| Air Input/Exhaust Duct(mm) | φ60/φ100 | |||
| The length Of Flue Dust(m) | 1 | |||
| Noise On Working(DB) | ＜42 | |||
| Exhaust Type | Forced Exhaust | |||
| Ignition Type | Integrated Automatic Ignition | |||
| Temperature Control | Gas Proportional Adjustment | |||
| Product Dimensions(mm) | 740*385*374 | |||
| Packing Dimensions(mm) | 800*395*384 | |||
| Container(20GP/40GP/40HQ) | 230/557 | |||
Reliable:
- Obtain the international ISO9001 quality system certification.
- All the important components are from the top-ranking professional manufacturers all over the world, pass strict
reliability and resistance tests by Dongyuan company technology testing center.
- Products are produced under European standard and pass the quality test of national gas appliances test center.
- Obtain CE certificate.
- Fashionable flat panel design,LCD display.
- Al control shower water / heating water switch.
- Shower water system adopts water flow and temperature double control, achieve European 3-star level.
- Adopting European combustion technology and heat exchanging technology, increase heat efficiency and save energy.
- Multiple automatic protections.
- Micro-computer control and self-inspection system.
- Positive intersect ant combustion technology, increases burning efficiency.
- Solid combustion chamber structure design, reduces working noise.
- Gas flow proportional control,provide sable heating temperature.
- Multiple automatic protections
- Water flow and temperature double control,provides stable domestic hot water temperature.
|
|
