Foshan Shunde Dongyuan Gas Appliances Industrial Co., Ltd. Foshan Dongyuan Thermal Technology Co.,Ltd
8 Years
| Ask Lasest Price | |
| Brand Name : | Dongyuan |
| Model Number : | L1PB24-NK |
| Certification : | ISO14001,ISO9001,OHSAS18001 |
| Price : | Negoiable |
| Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 10000pcs per month |
| Delivery Time : | 30days after receiving the deposit |

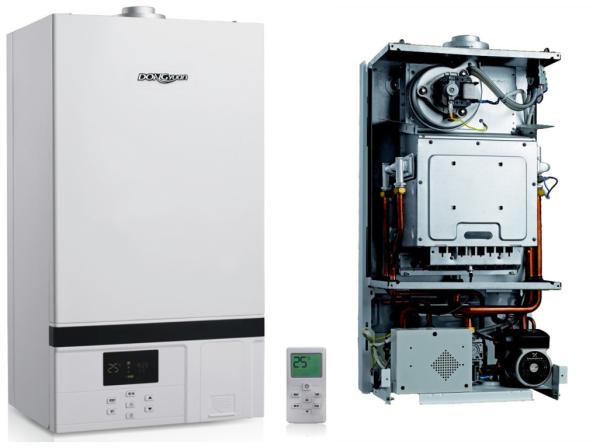

Energy Saving Environmental Protection For Radiator And Floor Heating Gas Boiler
Technical data
| Model Number | L1PB24 | L1PB28 |
| Gas Type | NG/LPG | |
| Rated Gas Pressure(Pa) | 2000/2800 | |
| Rated Gas Input(kw) | 24 | 28 |
| Rated Gas Output(kw) | 21.1 | 24.7 |
| Efficiency Under Rated Heat Input(%) | Above88% | |
| Power Supply | 20-50HZ | |
| Electric Power(W) | 110 | 110 |
| Temp.Range Of Heating Water(℃) | Radiator:30-80 Floor Heating:30-60 | |
| Heating Area(㎡) | 100-200 | 160-260 |
| Lift Of pump(m) | 5 | 6 |
| Application Water Pressure(Mpa) | 0.1-0.3 | |
| Expansion Tank Capacity(L) | 6 | 8 |
| Preset Pressure Of Expansion Vessel(Mpa) | 0.1 | |
| Water Circulation Type | Airtight Forced Circulation | |
| △T=25℃ Hot Water Supply(kg/min) | 12 | 14 |
| △T=30℃ Hot Water Supply(kg/min) | 10 | 11.7 |
| Temp.Range Of DHW Supply(℃) | 30-60 | |
| Applicative Water Pressure(mpa) | 0.03-0.8 | |
| The Minimum Starting Flow (L/min) | 2 | |
| The Minimum Closed Flow(L/min) | 1.6 | |
| Connections(mm) | For Gas&Heating Water Pipes:G3/4 For DHW Pipes:G1/2 | |
| Air Input/Exhaust Duct(mm) | φ60/φ100 | |
| Sparated Input/Exhaust Duct(optional) | φ80/φ100 | |
| The length Of Flue Dust(m) | 1 | |
| Noise On Working(DB) | ＜42 | |
| Exhaust Type | Forced Exhaust | |
| Ignition Type | Integrated Automatic Ignition | |
| Temperature Control | Gas Proportional Adjustment | |
| Product Dimensions(mm) | 740*400*305 | |
- With digital LCD display and all working condition is clear.
- With overtime protection when time for constant domestic hot water is more than 60 minutes, and the bath
would be more safe.
- With design of stable wind resistance, and the boiler works stably even in bad weather.
- Hot water temperature would be judged freely, the bath would be more safe.
- With special mode of floor heating as 60℃ limited temperature protection, and be more comfortable.
- With function of intelligent program, the time to on and off within one week can be set beforehand freely.
- Superial high heat efficiency to reach European standard of three star, energy saving and be more comfortable.
- The system is controlled by intelligent mirco computer. With automatic checking and judging, all working confition
is clear.
- With system monitoring all the time and three level for anti-frozen in winter to protect your family.
- With special pressure sensor to monitor the pump and change of heating system.
- With selectable device of indoor thermostat, the indoor temperature would be set freely and 20% energy saving.
- Delicate LCD display with indicate light, durable opeartion with knob.
- With modular structure design, advances assemble process, ensure excellent quality.
- 24H timing switch enable setting on/off with random needs.
- Main heat exchanger with high efficiency and energy- saving enable heating efficiency reach Europe Standard.
- The main parts are come from famous brand supplier which ensure best quality.
- High quality copper waterway valves and pipe components ensure how water supplier reliable and comfortable.
FAQ:
Q1:Are you a trading company or a factory?
A1: We are a factory.
Q2: What's your MOQ?
A2: 50 pcs per product, can be mixed with different power.
Q3:What is your production capacity?
A3:900-1200 pcs per day.
Q4:Do you sell spare parts?
A4: We only sell spare parts together with full product order, our factory normally supply full finished
products with shower kits and packing.
Q5: Could I use my own LOGO on the products?
A5: Yes.
|
|
